Pipo Analog

Pipo Analog is a versatile input hub for building interactive objects or custom interfaces using widely available components, modules or materials.

It offers 16 input channels:

• 8 voltage inputs via 4 Grove connectors (to connect switches, potentiometers, analog sensors, etc...).
  (4 of these inputs offer a selectable voltage range: 3.3V / 5V / 12V for compatibility with multiple standards)
• 8 capacitive touch inputs for building touch interfaces (using wires, electrodes, metallic tape or foil, fruits, conductive paint, and more).

Voltage inputs are protected and have solder pads for direct connection.

Input connectors:

• Grove connectors is a standard that is well spread among electronics for maker,IoT and education. Each connector carrries power and 2 inputs. They provide a very quick and reliable way to connect with a variety of ready to use input modules.
  -> If you wish to connect any other type of input, Pipo Analog is provided with 4 adapter boards and screw terminals to connect anything you like.
• The touch inputs on the other hand, have individual "push-in" connector (like that) . The are meant to fit in individual wires.


Compatibility:
Pipo communicates through OSC or Midi, making them compatible with most audio(visual) software, and does not require any drivers.
For eg: Touchdesigner, Ableton Live, Isadora, Max, MadMapper, Bespoke, Pure Data, VCV Rack, and many more...

User reported Midi BLE to pair successfully with Teenage Engineering synths.
/!\ Using Midi BLE with Windows is possible but requires to install a free app with additional latency.

OSC: Pipo Wifi can be connected directly to your computer, or connect through your any WiFi router (2.4Ghz)

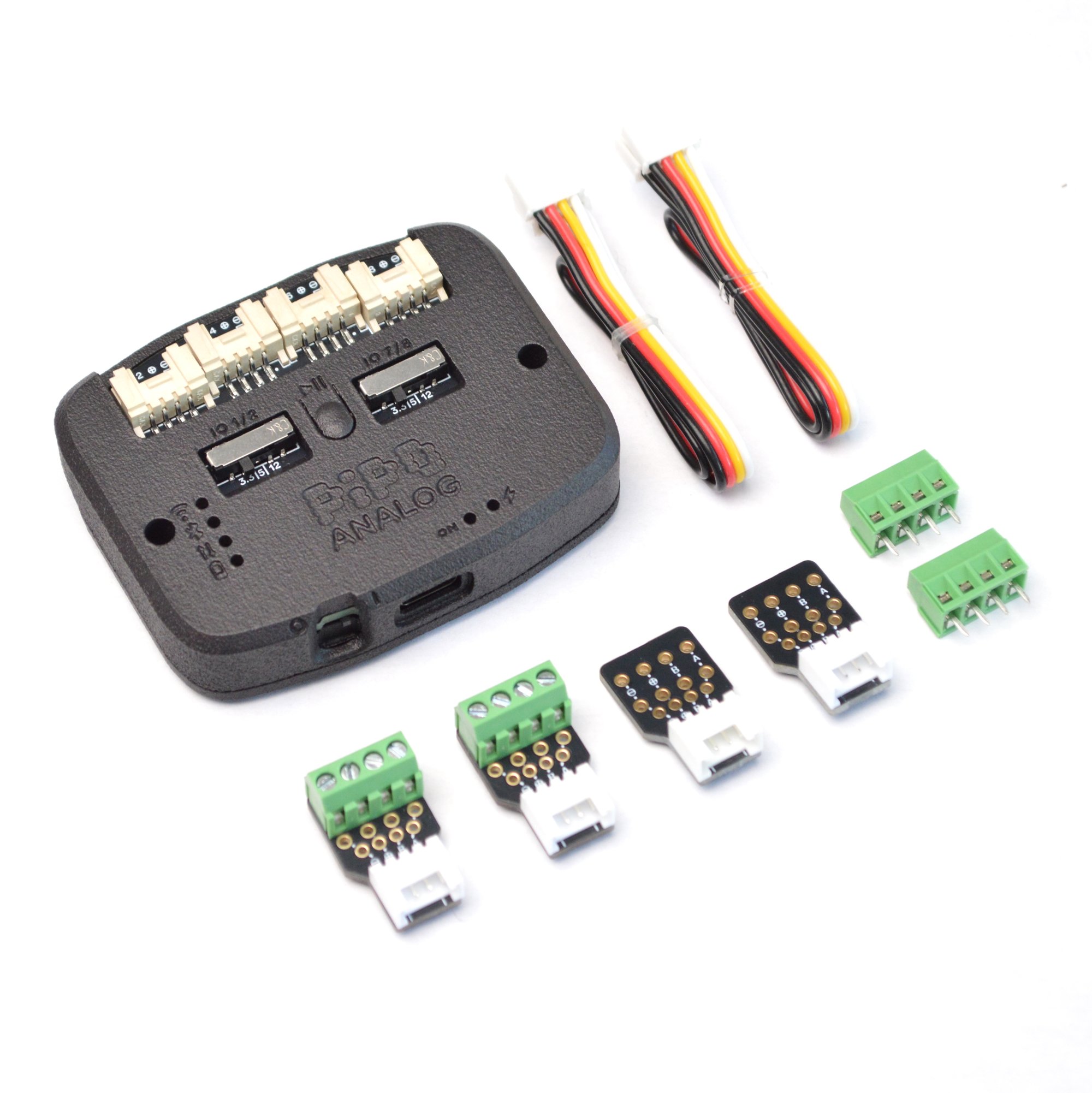

Included:

• 2x 20cm Grove cable
• 2x adapter board with screw terminal soldered
• 2x adapter board with screw terminal not soldered

Specifications:

• Charge/data connector: USB-C
• Battery: min 2.5h (depends on usage)
• WiFi: 2.4Ghz band
• Size: 70x56x16mm
• Latency: 4-20ms depending on settings.

Note:
- All the Pipo modules sold here are shipped from my workshop in Brussels, Belgium.
- If you would like to order using a European VAT number, please write me at [email protected]
- I ship twice a week
